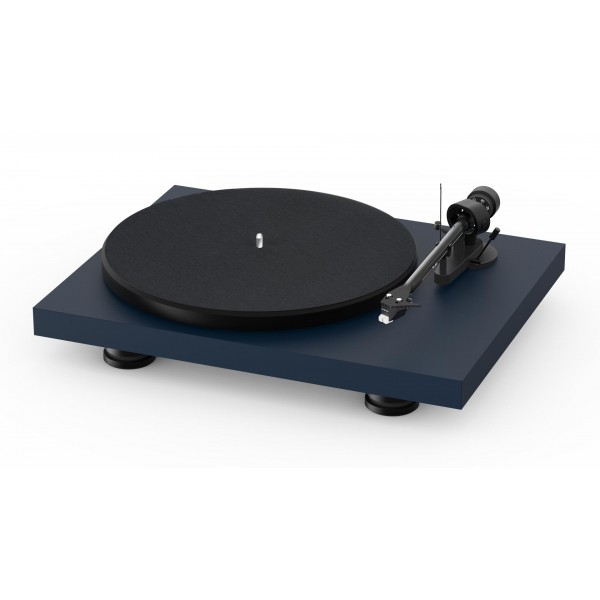

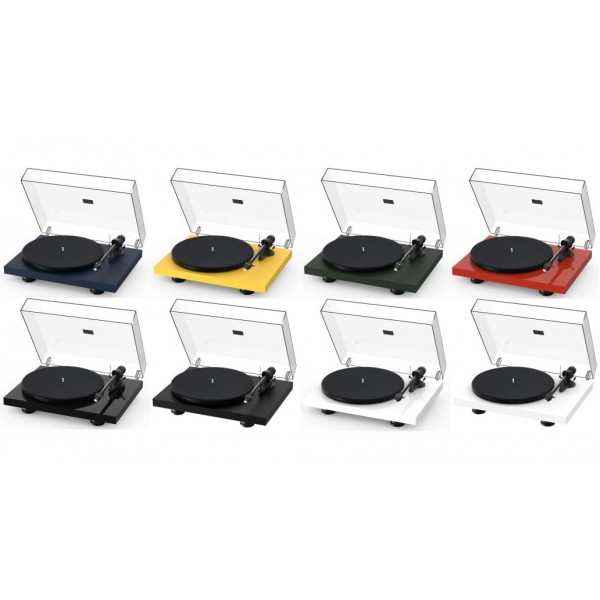

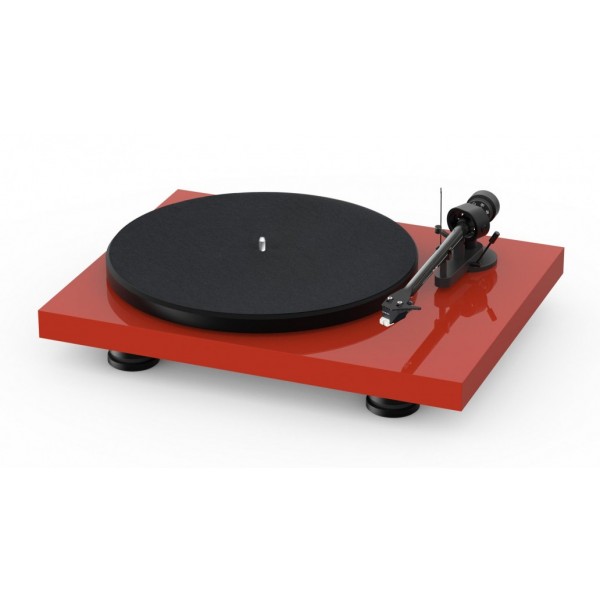

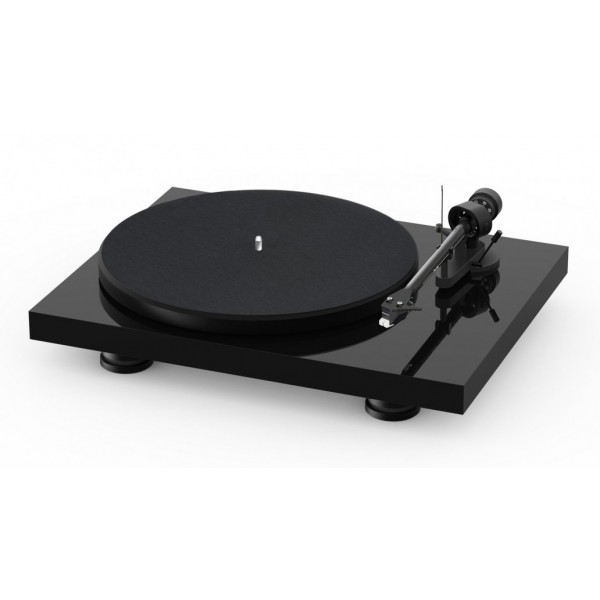

Project Debut Carbon EVO

Technical Specifications

Nominal speeds 33/45 r.p.m.. *** 78 r.p.m. optional

Speed variance 33: ±0.50% 45: ±0.60%

Wow and flutter 33: ±0.17% 45: ±0.15%

Signal to noise 68dB

Effective tonearm mass 6g

Effective tonearm length 8.6 " ( 218.5 mm)

Overhang 18,5 mm

Power consumption 4 W/ 0 W in Stand-By

Outboard power supply 15V / 0 – 0.8 mA DC (set at 0.5 mA), universal power supply

Dimensions (W x H x D) 415 x 118 x 320 mm, dust cover open 415 x 365 x 405mm

Weight 5,6 kg

Dimensions packaging (W x H x D) 488 x 235 x 393 mm

Weight incl. packaging 8.0kg

-----

MM-Cartridge Ortofon 2M Red:

Frequency range 20-22.000Hz

Channel separation 22dB/1kHz

Output voltage 5.5mV

Recommended load impedance 47kohms/amplifier connection – MM-input

Compliance/stylus type 20µm/mN – elliptical

Recommended tracking force 17.5mN

Weight 7.2g
