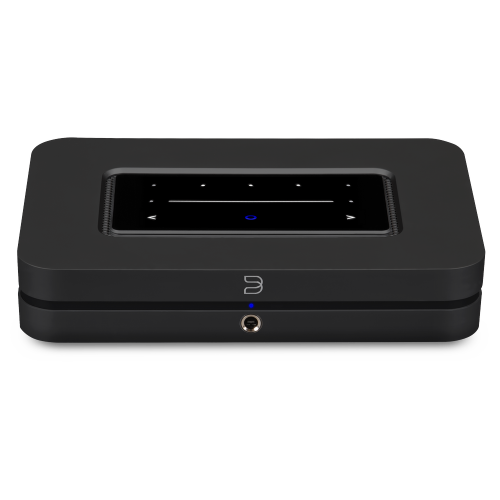

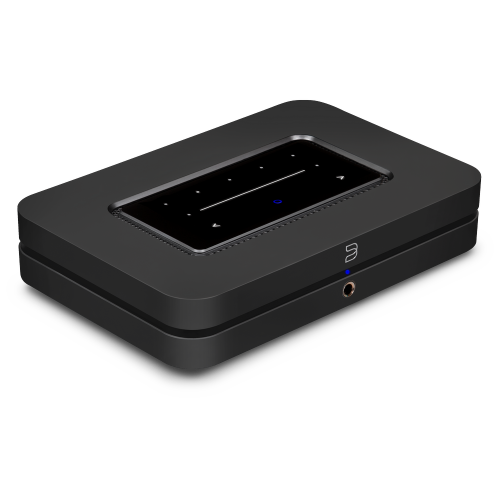

Bluesound Node N132 Network Player

N132 ÖZELLİKLERİ

NODE SPECIFICATIONS

AUDIO

Supported Audio File Formats:

Supported High-Quality Audio File Formats:

DSD Support:

Supported Multi-Channel Audio Formats:

Native Sampling Rates:

Bit Depth:

Audio Controls & EQ:

DAC:

Signal-to-Noise Ratio:

Distortion:

Headphone Continuous Output Power (THD<0.1%):

MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

FLAC, MQA, WAV, AIFF, MPEG-4 SLS

DSD256

Dolby Digital®

up to 192 kHz

16-24

BluOS Controller App

ESS ES9039Q2M

-118 dB

THD+N, 0.0007%

160mW, 16Ω / 230mW, 32Ω / 53mW, 250Ω / 22mW, 600Ω

SOFTWARE & INTEGRATIONS

Operating System: BluOS

App Controller Operating System: iOS, Android, Windows, macOS

Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files

Album Art Supported: JPG, PNG

Music Services & Internet Radio: 23+

3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready

Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron

Voice Control Integrations: Amazon Alexa Skills

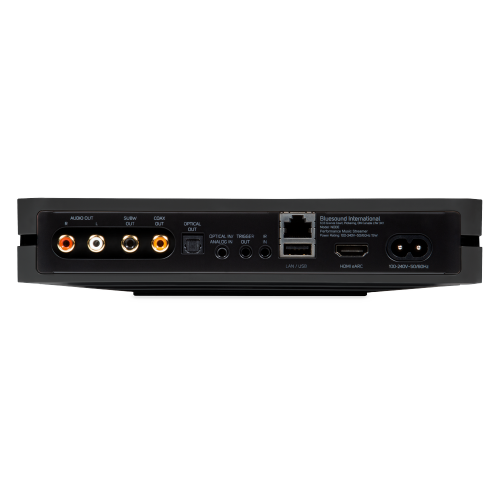

CONNECTIONS

Power Supply: Universal bi-pin AC cord input (100-240AC)

Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band

Bluetooth Quality: Bluetooth 5.2 aptX Adaptive

Bluetooth Connectivity: Two-Way (transmit & receive)

IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning

Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm

IR Input: 3.5mm Jack

HDMI Input: HDMI eARC

USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode

Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)

Coaxial Output: RCA

Optical Output: TOSLINK digital optical

Trigger Out: 12 Volt

Headphone Output: 6.3mm Stereo; Bluetooth

Subwoofer Output: RCA x 1; Wireless to PULSE SUB+

USER INTERFACE & CONTROL

Status Indicator: LED x2

Play/Pause Button: Touch LED

Volume Control Buttons: Touch Slider LED

Preset Buttons: Touch LED x 5

Proximity Sensor: Yes

GENERAL

Finish: Black or White: Matte Satin Paint

Storage Environment: -10°C to 50°C, 20% to 80% relative humidity

Operating Environment: 0°C to 40°C

Version: N132
