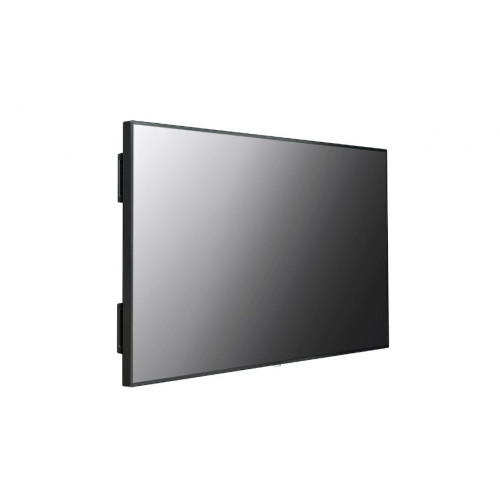

LG 98UH5J-H 98'' Led Endüstriyel Monitör Özellikleri Detaylı Olarak Aşağıda Yer Almaktadır. 98UH5J-H Modeli ile alakalı Projenize özel fiyat almak için Lütfen bizimle iletişime geçiniz.

PANEL

Screen Size 98"Panel Technology IPS

Back Light Type DirectAspect Ratio 16 : 9

Native Resolution 3840 x 2160 (UHD)Refresh Rate 60Hz

Brightness 500nit (Typ.)Contrast Ratio 1,200:1

Dynamic CR 1,000,000:1Color gamut NTSC 72%

Viewing Angle(H x V) 178 X 178Color Depth 10bit, 1.07Billion colors

Response Time 8ms (G to G)Surface Treatment(Haze) 28%

Life time 50,000Hrs (Typ.)Operation Hours (Hours/Day) 24/7

Portrait / Landscape Yes / Yes

CONNECTIVITY

Input HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack),

RJ45(LAN), IR IN, USB2.0 Type A(1)Output HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color BlackBezel Width Even bezel : 14.9mm

Weight(Head) 66KgPacked Weight 99Kg

Monitor Dimension(W x H x D) 2191.8 x 1246.8 x 86.1mm

(without Handle and LG Logo)Carton Dimensions(W x H x D) (Box outer size) 2342 x 1386 x 420mm

Handle YesVESATM Standard Mount Interface 800 x 400

KEY FEATURE

Key features Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor,

Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,

Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)),

Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback,

Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager,

3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

Operation Temperature 0 °C to 40 °COperation Humidity 10 % to 80 %

POWER

Power Supply AC 100-240V~, 50/60HzPower Type Built-In Power

POWER CONSUMPTION

Typ. 420W (TBD)Max. 570W (TBD)

BTU (British Thermal Unit) 1433 BTU/Hr(Typ.), 1945 BTU/Hr(Max) (TBD)Smart Enegy Saving(~70%) 294W (TBD)

DPM 0.5WPower off 0.5W

SOUND

Speaker Yes

CERTIFICATION

Safety CB / NRTLEMC FCC Class "A" / CE / KC

ErP / Energy Star Yes (NewErP) / No (TBD)

SOFTWARE COMPATIBILITY

SuperSign CMS YesSuperSign Control / Control+ Yes / Yes

SuperSign WB YesSuperSign Media Editor Yes

Promota Yes (Not available for EU/CIS)Mobile CMS Yes

Signage 365 Care Yes

LANGUAGE

OSD English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil),

Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

Basic Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
